SolarAnywhere offers industry-first, high-resolution, far-horizon shading data to accurately assess shading losses due to complex terrain near a PV site. SolarAnywhere far-shading data is generated and delivered in the form of azimuth and elevation pairs (expressed as degrees) and is available globally. These datasets can be accessed from the SolarAnywhere data website or the SolarAnywhere API, and are included with all Typical Year, Typical Year+ and Sites licenses.

How to Access

SolarAnywhere far-shading datasets are currently offered through our Typical Year, Typical Year+ and Sites licenses, with access through the SolarAnywhere online data portal or SolarAnywhere API. Far-shading data is available for any licensed Typical Year, Sites or Public location. If the desired location is not currently licensed to a user, the user must purchase that site (with a Typical Year or Sites license) to access the requested far-horizon shading dataset through SolarAnywhere.

Access via the SolarAnywhere Website

Far-shading files are available from the “Far Shading” tab on the SolarAnywhere data website. These files are output as valid horizon profile CSV files containing two primary columns: azimuth (degrees) and elevation (degrees).

To download a far-shading file:

1. Navigate to the Far Shading tab in the SolarAnywhere data portal.
2. Select a location for download by searching by the site location or by selecting a location on the map:


   Figure 1. Selecting a Far Shading Location on the SolarAnywhere Data Website

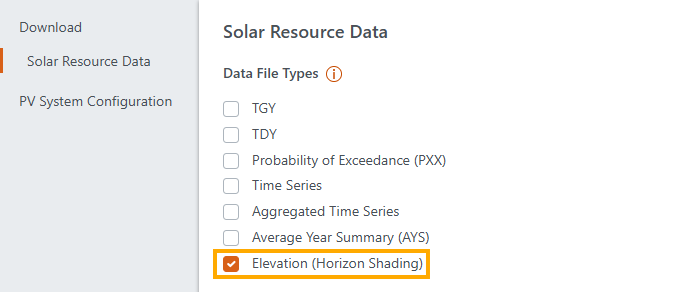

3. Click “Edit Settings” and select your preferred delivery method (download or email).
4. Choose “Get Data” and “Confirm” and the file will begin the download process.

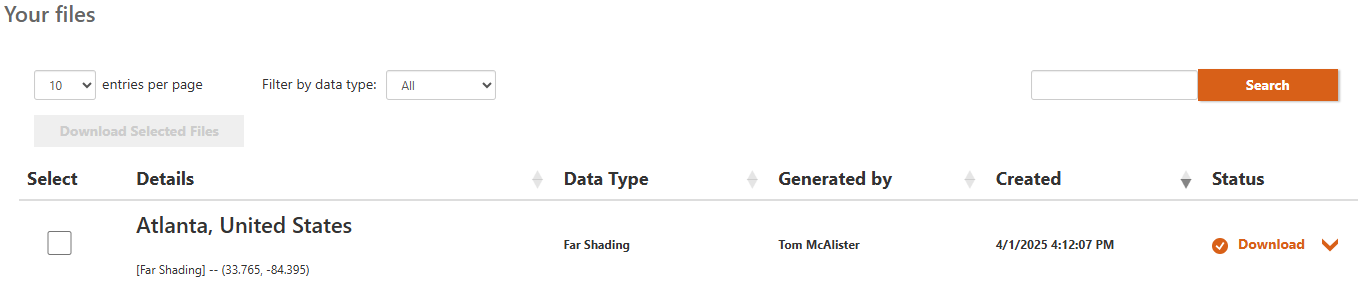

5. Navigate to the Files tab to download and view the file:

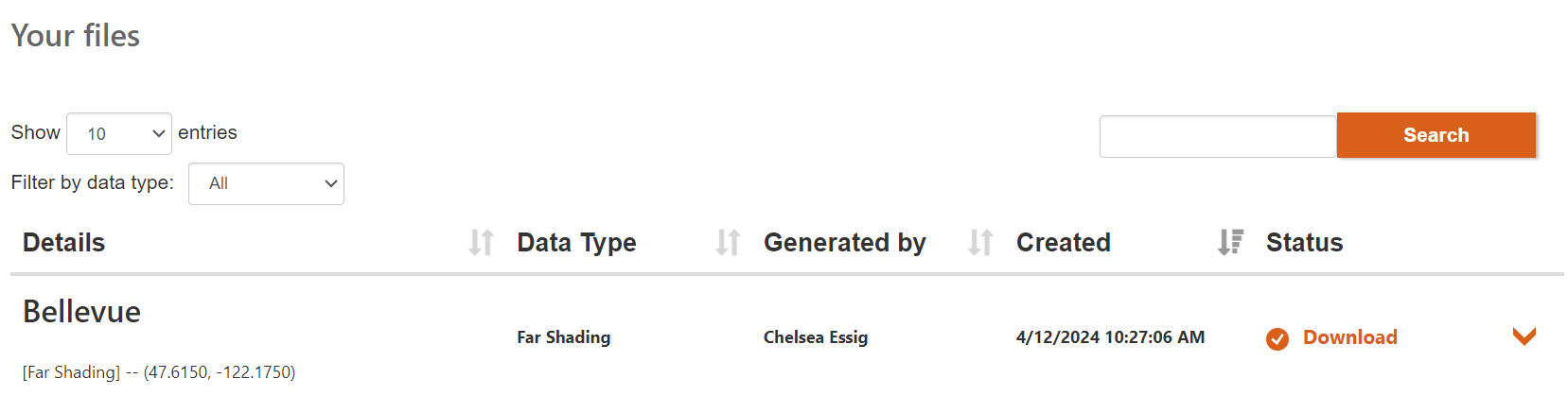

Figure 2. Files Tab on the SolarAnywhere Data Website

Users can demo far-shading files at select locations with SolarAnywhere Public.

Access via the SolarAnywhere API

Far-shading data can also be requested through the SolarAnywhere API. Visit this page of our API documentation to access example far-shading requests.

Far Shading Impacts on Irradiance

Solar PV projects are increasingly being built in locations with undulating terrain and proximity to hills, mountains or canyons. Nearby topographical features such as valley walls or hills can block solar irradiance from reaching PV panels, especially in the early and late hours of the day. These irradiance and PV output losses are commonly referred to as far-horizon shading losses and can range anywhere from less than 1% in estuarine wetlands, to over 12% in evergreen forests. Some studies show that direct solar irradiance can be obstructed for most of the year on certain steep mountain slopes.¹

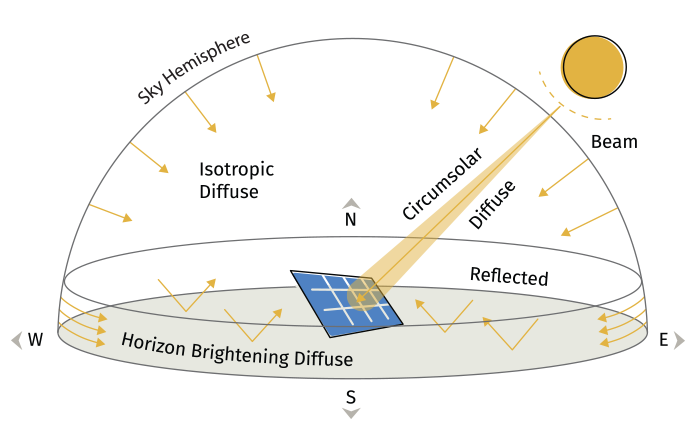

Figure 3 demonstrates the effect of horizon shading on irradiance. If the sun is below the horizon profile, the direct/beam component (Beam_horizontal) as well as the circumsolar diffuse component (D_CS) are blocked entirely, whereas a fraction of the horizon brightening (D_HB) and isotropic diffuse (D_iso) components is blocked.

Figure 3. Effect of Horizon Shading on Irradiance

Because local terrain is unique and solar angles vary constantly, the shadows must be considered for each sun position over an hourly, daily and monthly time interval. To estimate this, a site-specific shading horizon profile must be determined for the PV system. This horizon profile data is generally in the form of azimuth and corresponding elevation pairs, and it can be used to estimate the impact of terrain undulation on the solar resource and PV output.

Methodology

SolarAnywhere offers far-shading data to support accurate PV performance modeling. The data is based on satellite observations from the NASA Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) dataset. The spatial resolution of this data is 30m x 30m nominal native resolution (1 arc-second resolution).

For each user-provided coordinate, the surrounding terrain is scanned at a 1-degree angular resolution. Elevation angles are calculated at multiple distances from the origin, and the largest angle is chosen as the elevation angle of the horizon.

SolarAnywhere far-shading data is available with SolarAnywhere versions 3.7 and newer in all geographic regions. All SolarAnywhere users can access this data through the SolarAnywhere data website and the API at no additional cost.

Using SolarAnywhere Far-Shading Data

A study of terrain obstruction induced losses on the island of Oahu, Hawaii, found overall reduction in total yield of about 7% across the island. To learn more about far-shading and impact on PV generation, watch recorded the presentation.

Conventional approaches to estimating horizon shading, such as use of commercial shading analysis tools and raw fisheye images, tend to overestimate the direct beam shading.² High-resolution satellite-derived shading data enables solar developers and contractors to generate horizon profiles on-demand, saving time spent in costly on-site visits to determine far shading impacts.

In addition to obstructions farther in the horizon, SolarAnywhere far-shading data also accounts for the effect of nearby objects such as trees, buildings etc. Figure 4 shows how SolarAnywhere far-shading data accounts for near-object shading from trees at the test site when compared with PVGIS data.

Figure 4. Comparison of SolarAnywhere and PVGIS Horizon Shading Data

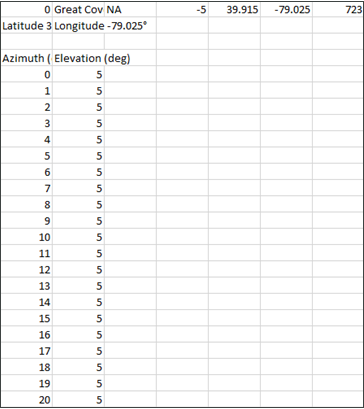

SolarAnywhere far-horizon data is generated in the form of azimuth and elevation pairs for a given coordinate. Figure 5 shows the format of the far-shading output file.

Figure 5. Far-Shading Datafile

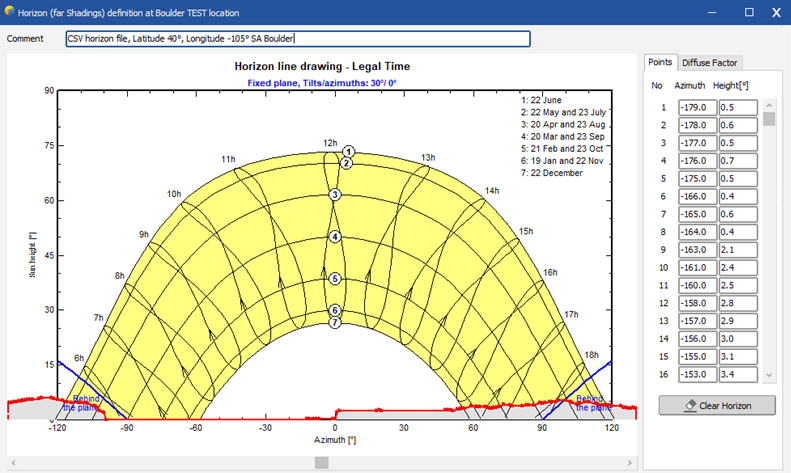

The file can be used with third-party PV modeling tools to estimate the impact of the horizon profile on irradiance and improve the accuracy of PV performance estimates. Figure 6 shows an example of the horizon profile generated on importing SolarAnywhere far-shading data in PVsyst.

Figure 6. Horizon Profile Generated in PVsyst using SolarAnywhere Far-shading Data

For instructions on importing a SolarAnywhere a far-shading datafile into PVsyst or PlantPredict, please visit the following pages within the SolarAnywhere Support Center:

1. Using SolarAnywhere Data in PVsyst
2. Using SolarAnywhere® Data in PlantPredict

References

¹ Aguilar C, Herrero J, Polo MJ. 2010. Topographic effects on solar radiation distribution in mountainous watersheds and their influence on reference evapotranspiration estimates at watershed scale. Hydrololy and Earth Systems Sciences, 14(12), p 2479–2494. DOI: 10.5194/hess-14-2479-2010.

² Mira DC, Bartholomaus M, Poulsen PB, Spataru SV. 2021. Accuracy Evaluation of Horizon Shading Estimation Based on Fisheye Sky Imaging. IEEE 48^th Photovoltaic Specialists Conference (PVSC). DOI: 10.1109/PVSC43889.2021.9519063. Link
